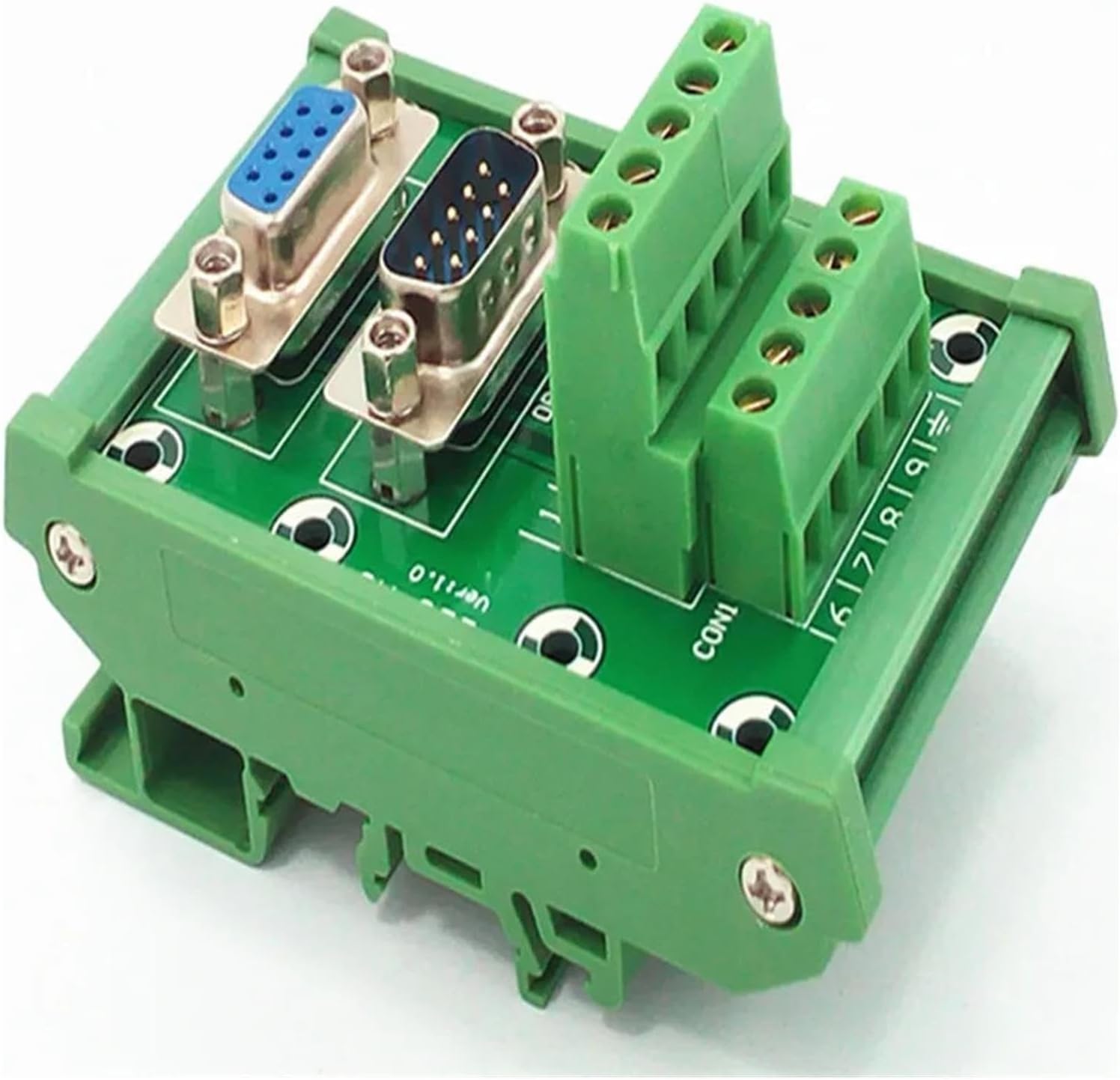

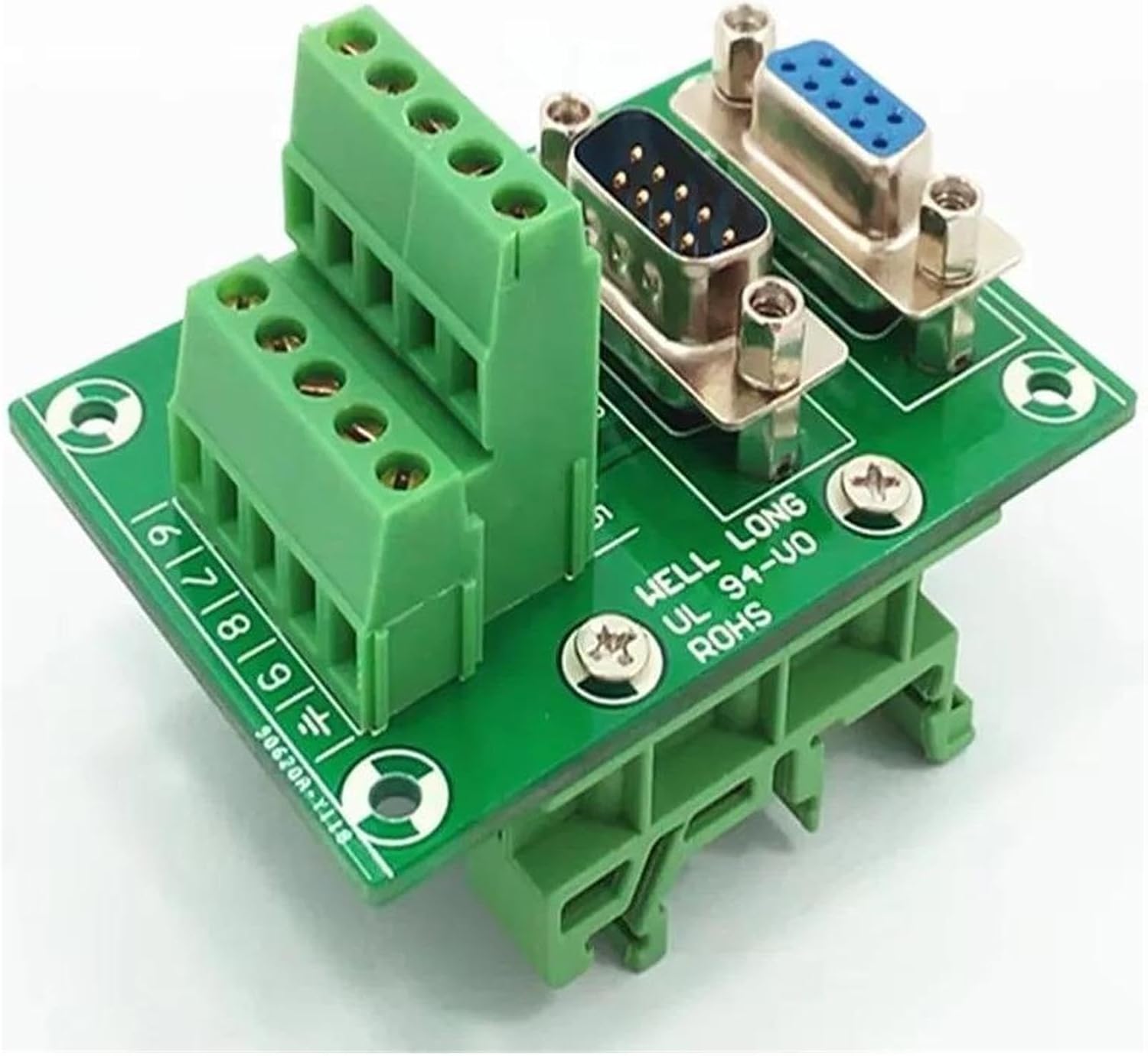

D-SUB DB9 DIN Rail Mount Interface Module Male/Female Header Breakout Board, Terminal Block, Connector(DB-9MG-B2-1)
Product details
| Management number | 250063080 | Release Date | 2026/09/17 | List Price | US$21.70 | Model Number | 250063080 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Terminal BlocksD-SUB DB9 DIN Rail Mount Interface Module Male / Female Header Breakout Board, Terminal Block, Connector.DB9 Male/Female header connectors.Din rail mountable - for width 35 / 32 / 15mm rails.Pitch 5.0mm/0.197" screw terminal block.FR-4 fiber glass PCB, dual copper layers.External dimensions: 87 x 53 x 54mm(W x L x H).PCB dimensions: 72.5 x 51mm(W x L).Rated voltage: 60V.Rated current: 1A / per pin.Operating Temperature: -20ºC to 50ºCTerminal block specifications:Wire range - 24-12AWG.Strip length - 5mm.Screws - M3,steel,Zinc plating color.Pin header and Cage - Brass.Conductor Size : 21 - 30 AWGNumber of Contacts : 1 - 10Model Number : DB-9MG-B3-1Type : Power DistributionApplication : PLC transfer,Relay terminal block connector,Computerized Numerical Control repairPCB : FR-4 fiber glass PCB, dual copper layers.
- Terminal Blocks
- D-SUB DB9 DIN Rail Mount Interface Module Male/Female Header Breakout Board, Terminal Block, Connector
| ASIN | B0HJLWYLZ5 |
|---|---|
| Color | Db-9mg-b2-1 |
| Model | TPUOBYRXW |
| Brand Name | TPUOBYRXW |
| Part Number | TPUOBYRXW |
| Manufacturer | TPUOBYRXW |
| Number of Items | 1 |
